YD87-13-4F70RPPCA2WL
Model Number: YD87-13-4F70RPPCA2WL
Category
Application: Fire/Safety
Size: 78-100mm
Feature Icons:
Features: Plastic bracket, aluminum heat dissipation cover, coaxial tweeter, waterproof
Specification:

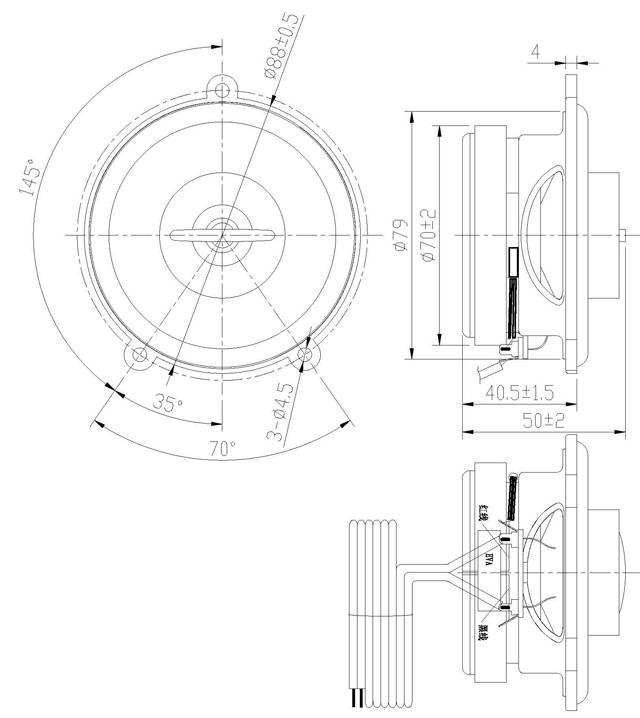

Diameter: Oslash;88mm
Cone material: Paper
Edge: Foam
Nominal power: 15w
Maximum power: 25w
Impedance: 4±15%OΩ
Voice coil: Oslash;20.4mm
Fo: 130±20%Hz

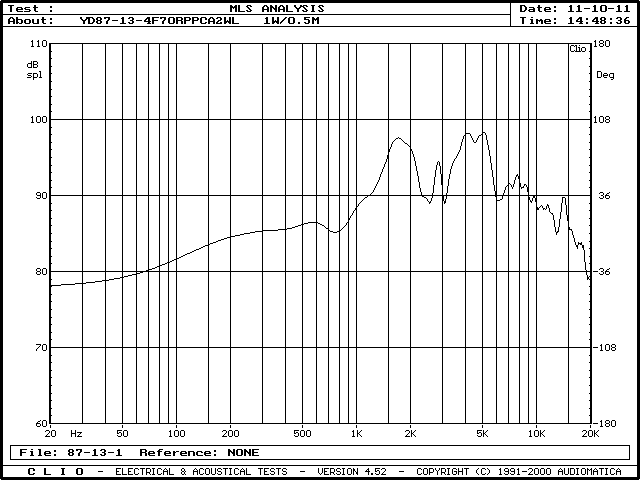

Response: Fo-20KHz
S. P. L: 89±3dB/1W/0.5M
Magnet size: Oslash;70*Oslash;32*10(Ferrite)
Net weight: 490g
